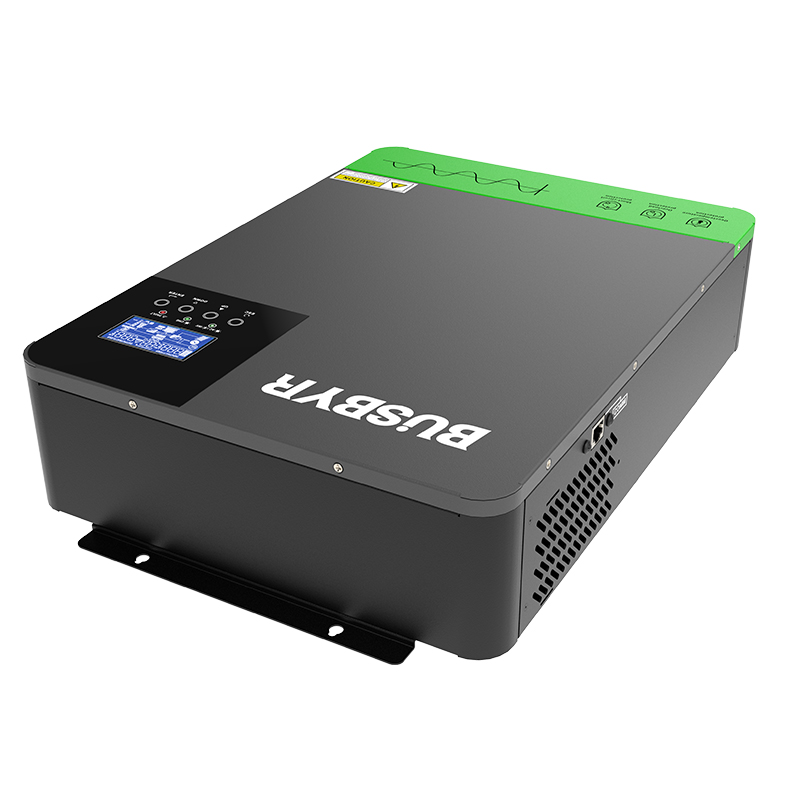

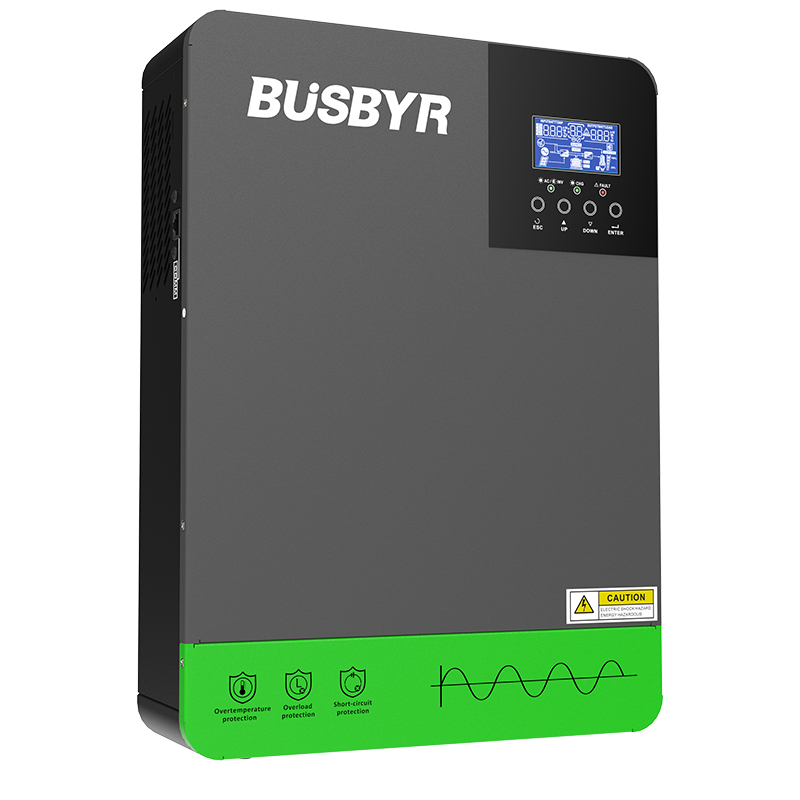

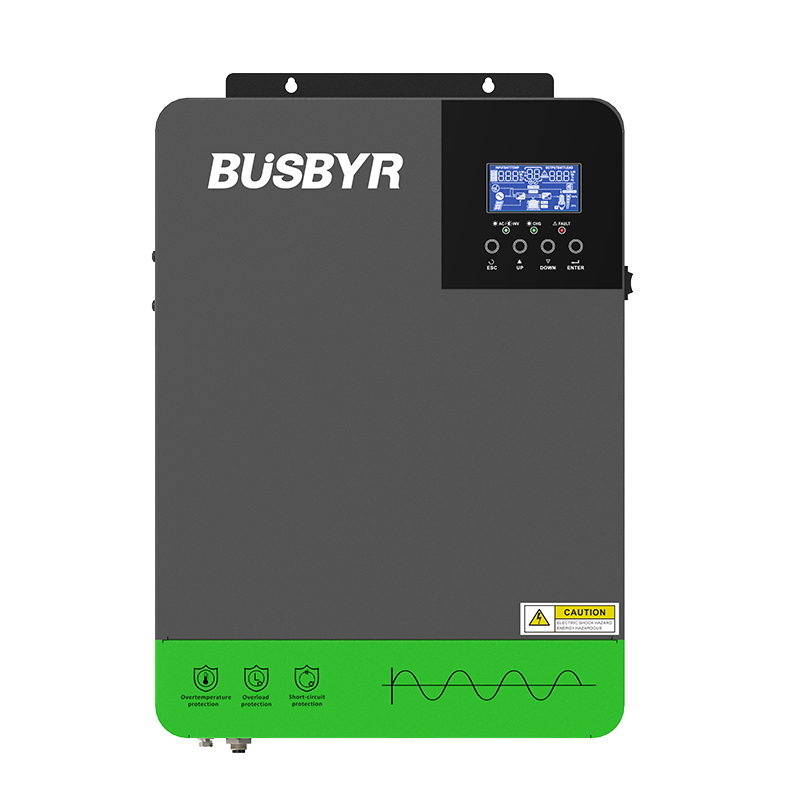

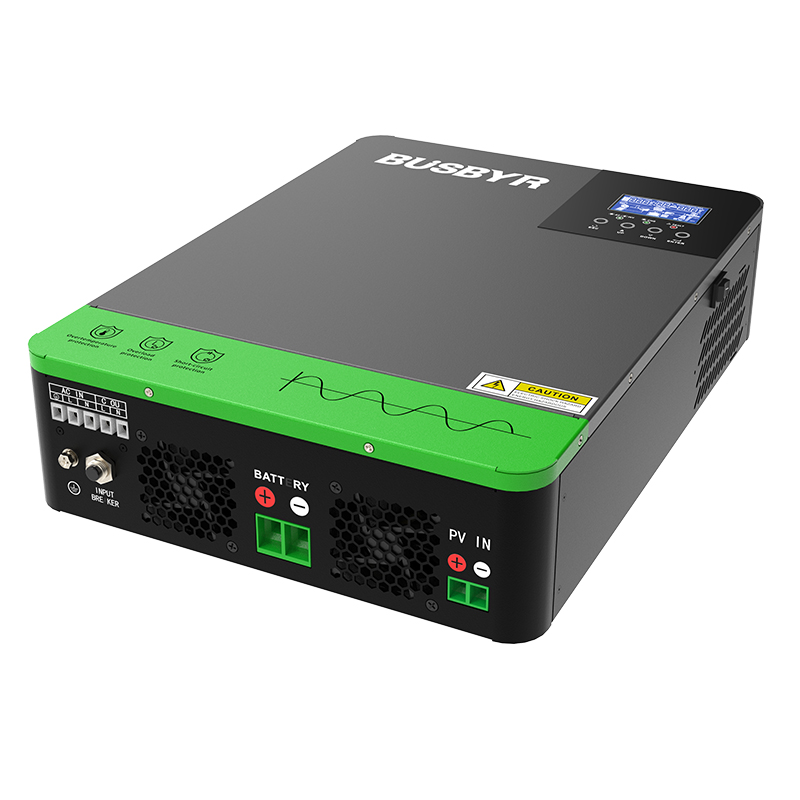

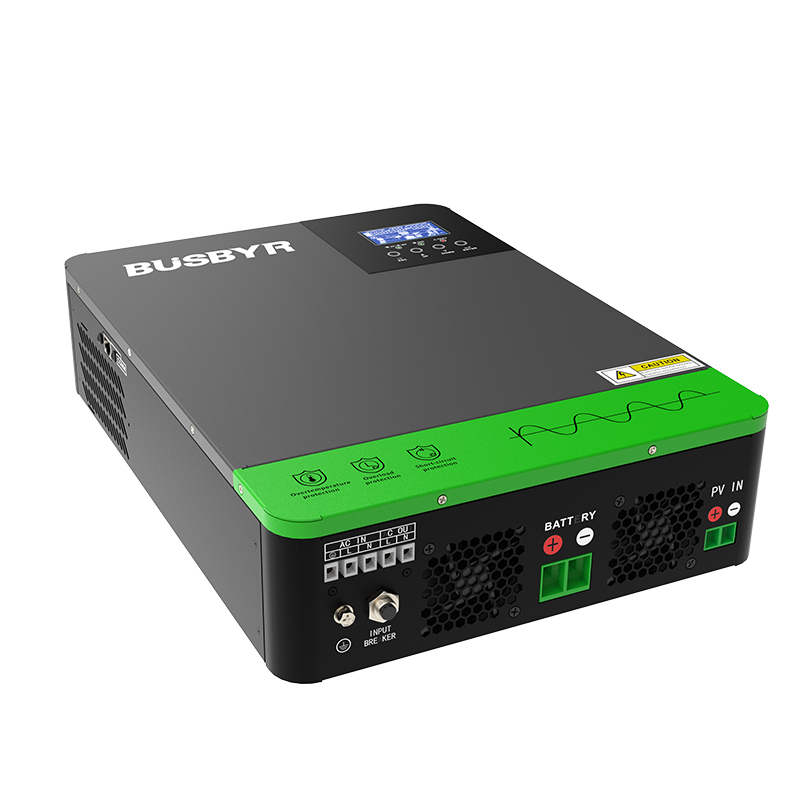

2kva hybrid solar inverter with MPPT

BSSI-V Series (2.2KW/3.2KW/4.2KW/6.2KW/7KW/10.2KW)

Key Features

●Pure sine wave solar inverter(on/off Grid)

●Programmable supply priority for PV, battery or Grid

●High PV input voltage range(55~450VDC)

●Built-in Max 110A (2.2KW&3.2KW 80A, 4.2KW&6.2KW 110A)MPPT solar charge

●Compatible with lithium-ion battery

●Support BMS communication with Lithium battery

●Smart battery charge design to optimize battery life

●Cold start function

●Intelligent fan speed adjustment

●Built-in anti-dusk kit for harsh environment(2200VA/3200VA/4200VA/6200VA)

●WIFI available for IOS and Android (optional)


Description

2kva hybrid solar inverter with 80A MPPT is a high-frequency on/off grid inverter with exquisite design. With thin and light appearance, which can be easily carried and installed. The maximum pv voltage range from 55vdc to 450vdc, which is very suitable for rooftop solar systems. It is capable of converting solar energy into 230V AC and 24V DC. At the same time, this inverter charger is also equipped with AC interface, as well as a standard RS232 or RS485 interface, which is convenient for connection and communication with other devices. In addition, it also supports WIFI monitoring data, and you can know the system operation status at any time through your mobile phone or computer. The intelligent BMS management system can manage the battery to improve battery life and efficiency. With its advanced technology and convenient use experience, this 2kw solar inverter charge controller meets all the needs of home and commercial applications, has become an indispensable and important part in the field of solar energy.


Specification

MODEL

BSSI-V-G2200

BSSI-V-G4200

Rated Power

2200V / 1800W

4200V / 3800W

INPUT



Voltage

230VAC

Selectable Voltage Range

170-280VAC(for personal computers)
   90-280VAC(for home  appliances)

Frequency Range

50Hz/60Hz(Auto aensing)

OUTPUT



AC Voltage Regulation (Batt.Mode)

230VAC±5%

Surge power

4400VA

8000VA

Transfer Time

10ms(for personal computers)
  20ms(for home appliances)

Wave  form

Pure    Sine  Wave

BATTERY   &   AC  CHARGER



Battery Voltage

12VDC

24VDC

Floating Charge Voltage

13.5VDC

27VDC

Overcharge    Protection

15.5VDC

31VDC

Maximum    Charge  current

60A

80A

SOLAR  CHARGER



MAX.PV Array Power

2000W

6000W

MPPT Range @Operating Voltage

55-450VDC

Maximum  PV   Array  Open Circuit  Voltage

450VDC

Maximum    Charging  current

80A

110A

Maximum    Efficiency

98%

PHYSICAL



Dimension. D*W*H(mm)

405×286×98MM

423×290×100MM

Net Weight (kgs)

4.5Kg

7Kg

Communication Interface

RS232/RS485(Standard)
  WIFI(Optional)

OPERATING  ENVIRONMENT



Humidity

5% to  95%   Relative Humidity(Non-condensing)

Operating    Temperature

-10°C to 55°C

Storage  Temperature

-15°C to 60°C
