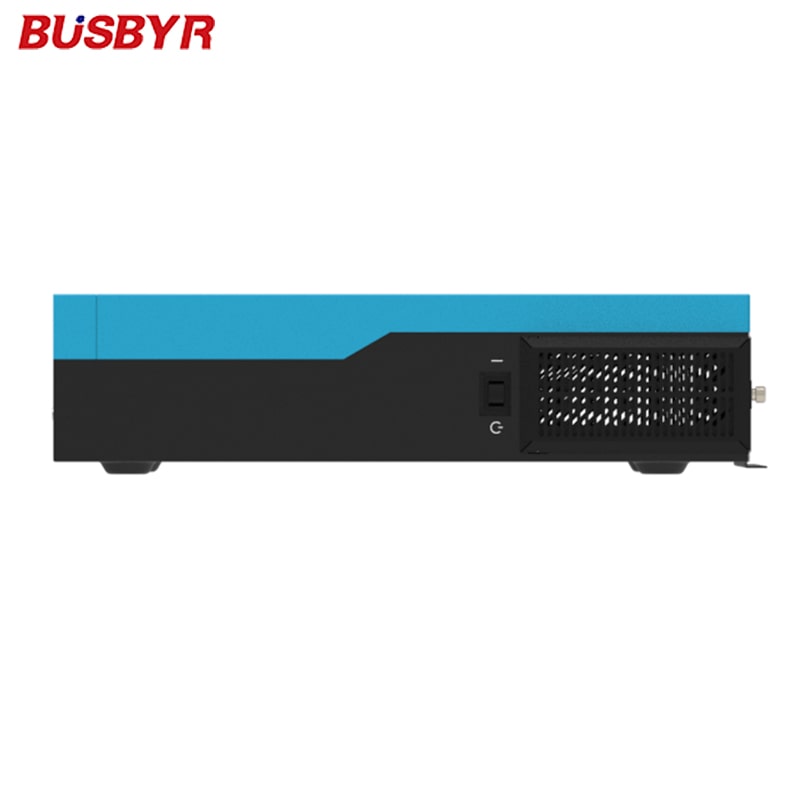

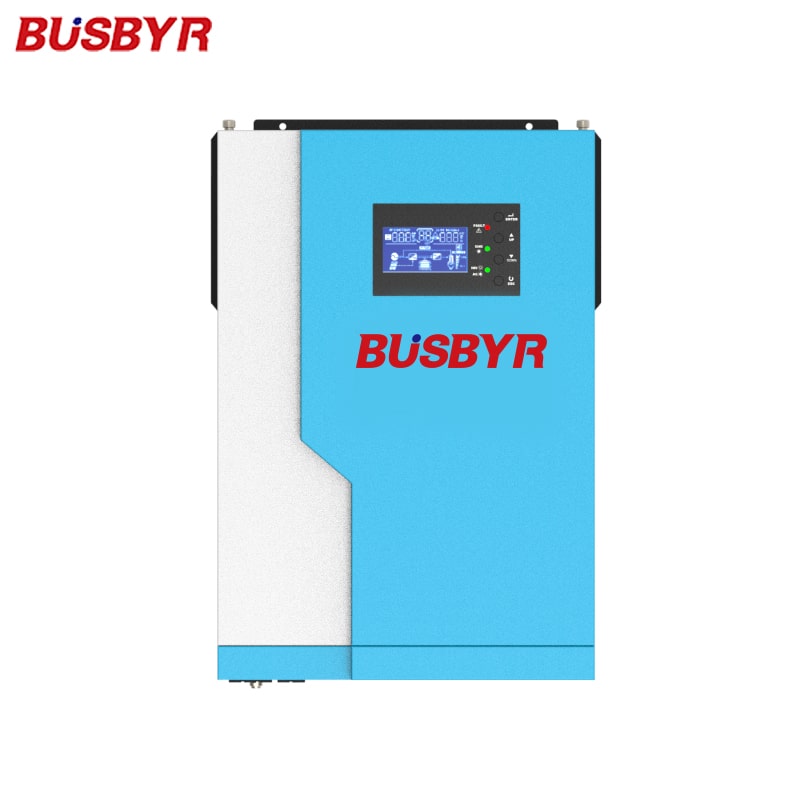

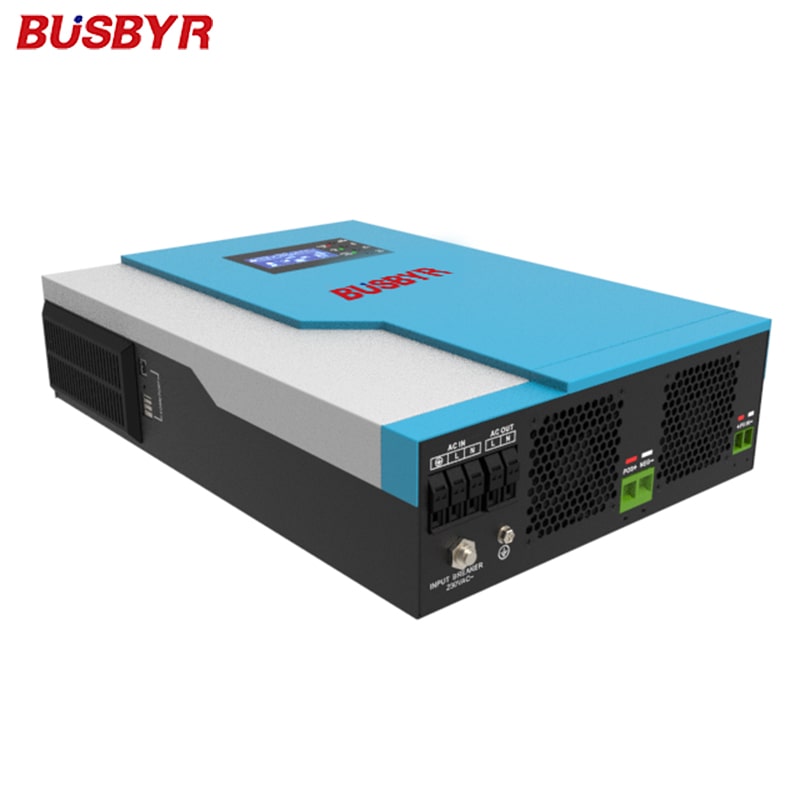

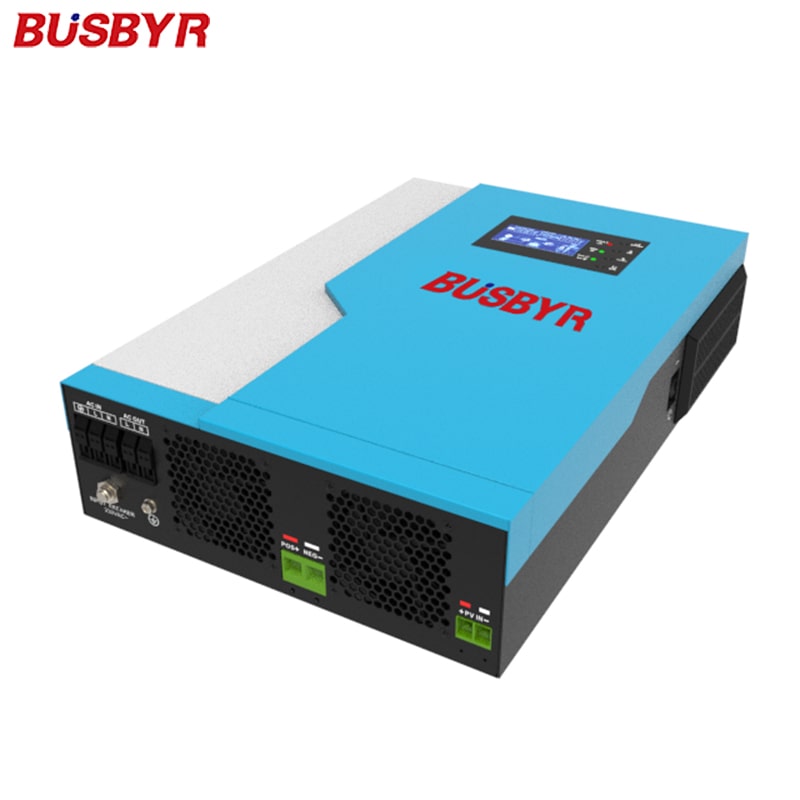

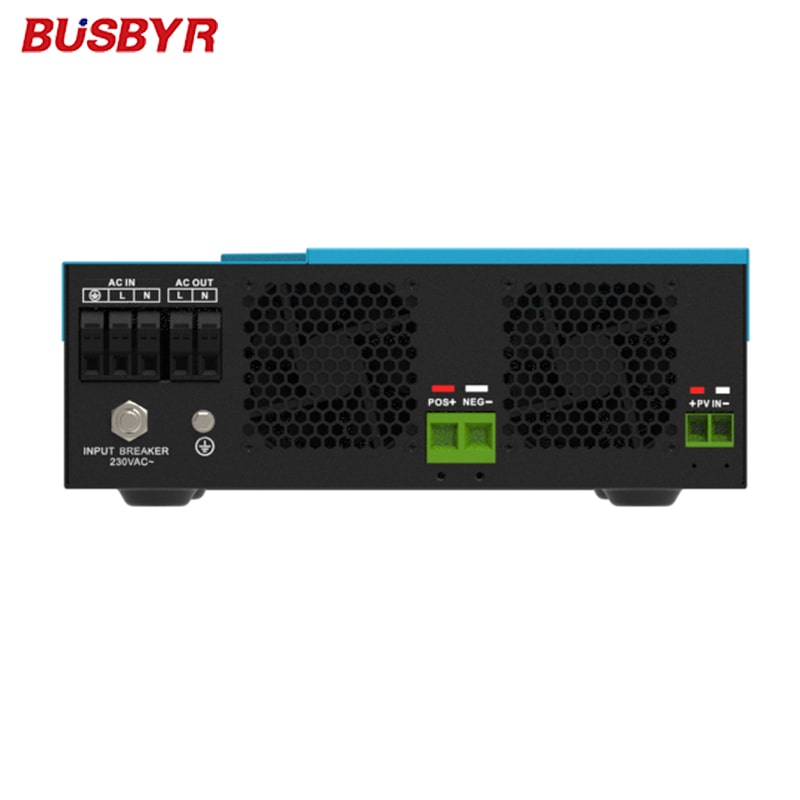

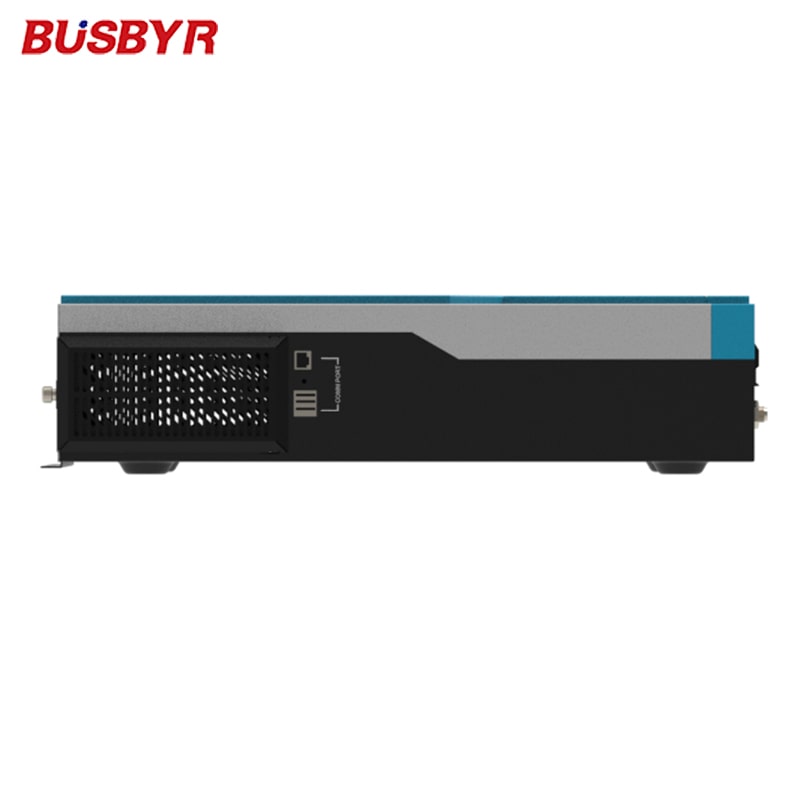

5.5KW solar power inverter
BS2 Series (3.5/5.5KW)Key Features
●Pure sine wave solar inverter
●Output PF=1.0
●WIFI&GPRS available for App
●Inverter running without battery
●Built-in 100A MPPT solar charger
●High PV input voltage range: 120VDC~450VDC
●Built-in anti-dust kit for harsh environment
●Smart battery charge design to optimize battery life
Description
5.5KW solar power inverters are suitable for power systems, communication systems, railway systems, shipping, hospitals, shopping malls, schools, outdoors and other places. They can be connected to the mains to recharge the batteries, and can be set as solar power priority mains backup, or Mains power is given priority to solar and power backup. This 5.5Kva solar power inverter can be running without battery.
Specification
Model | BS2-3500W | BS2-5500W |
RATED POWER | 3500VA/3500W | 5500VA/5500W |
Input | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170~280VAC(For Personal Computers) | |
90~280VAC(For Home Appliances) | ||
Frequency Range | 50 Hz/60Hz(Auto sensing) | |
OUTPUT | ||
AC Voltage Regulation(Batt.Mode) | 230VAC±5% | |
Surge Power | 7000VA | 11000VA |
Efficiency(Peak)PV to INV | 97% | |
Efficiency(Peak)Battery to INV | 94% | |
Transfer Time | 10 ms (For Personal Computers); 20 ms(For Home Appliances) | |
BATTERY&AC CHARGER | ||
Battery Voltage | 24VDC | 48VDC |
Floating Charge Voltage | 27VDC | 54VDC |
Overcharge Protection | 33VDC | 63VDC |
Maximum Charge Current | 80A | 80A |
SOLAR CHARGER | ||
Maximum PV Array Power | 5000W | 6000W |
MPPT Range Operating Voltage | 120-450VDC | |
Maximum PV Array Open Circuit Voltage | 500VDC | |
Maximum Charging Current | 100A | |
Maximum Efficiency | 98% | |
PHYSICAL | ||
Dimension,D*W*H(mm) | 440*310*110 | |
Cartoon Dimension,D X W XH(mm) | 590*390*210 | |
Net Weight(kgs) | 8.5 | 9.5 |
Gross Weight(kgs) | 9.5 | 10.5 |
Communication interface | USB/RS232/GPRS/WIFI | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity (Non~condensing) | |
Operating Temperature | -10~50℃ | |
