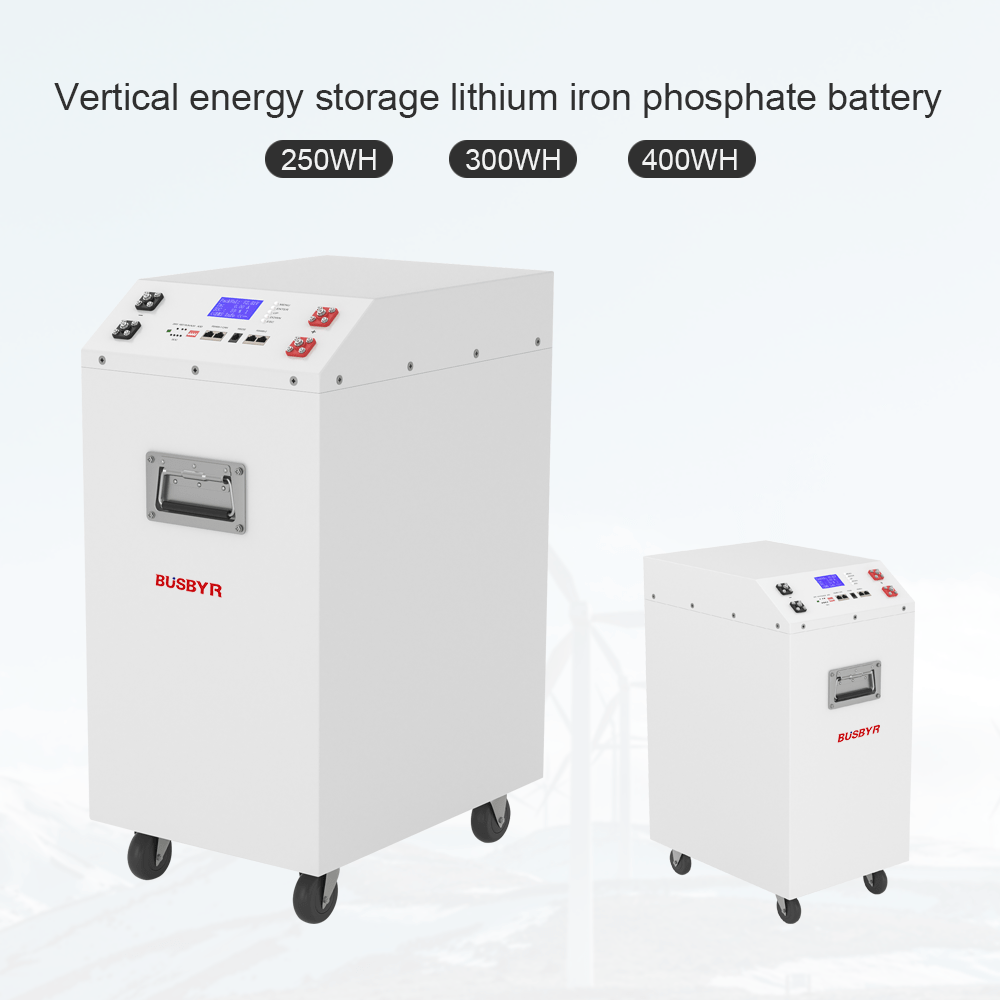

LiFePO4 4000 Cycles 48V 51.2V 250Ah 10KWh Vertical Lithium Battery For Solar Panels
Vertical Lithium BatteryKey Features
●Safety in use
●Low self discharge rate
●Good high temperature performance
●High Cycle times and long service life
●High energy density and conversion efficiency
●Environmental friendly, without any heavy metals
●Easy installation, BMS Modbus protocol can communicate with the inverter
Description

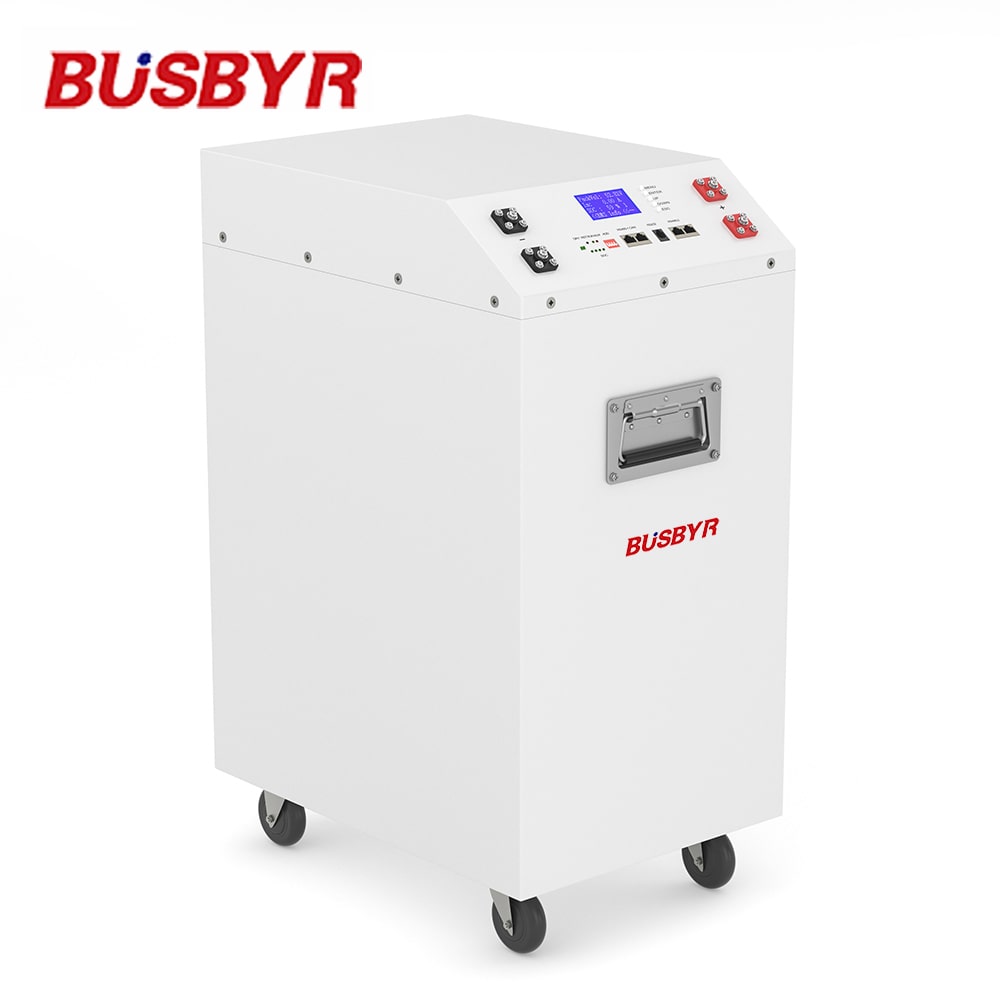

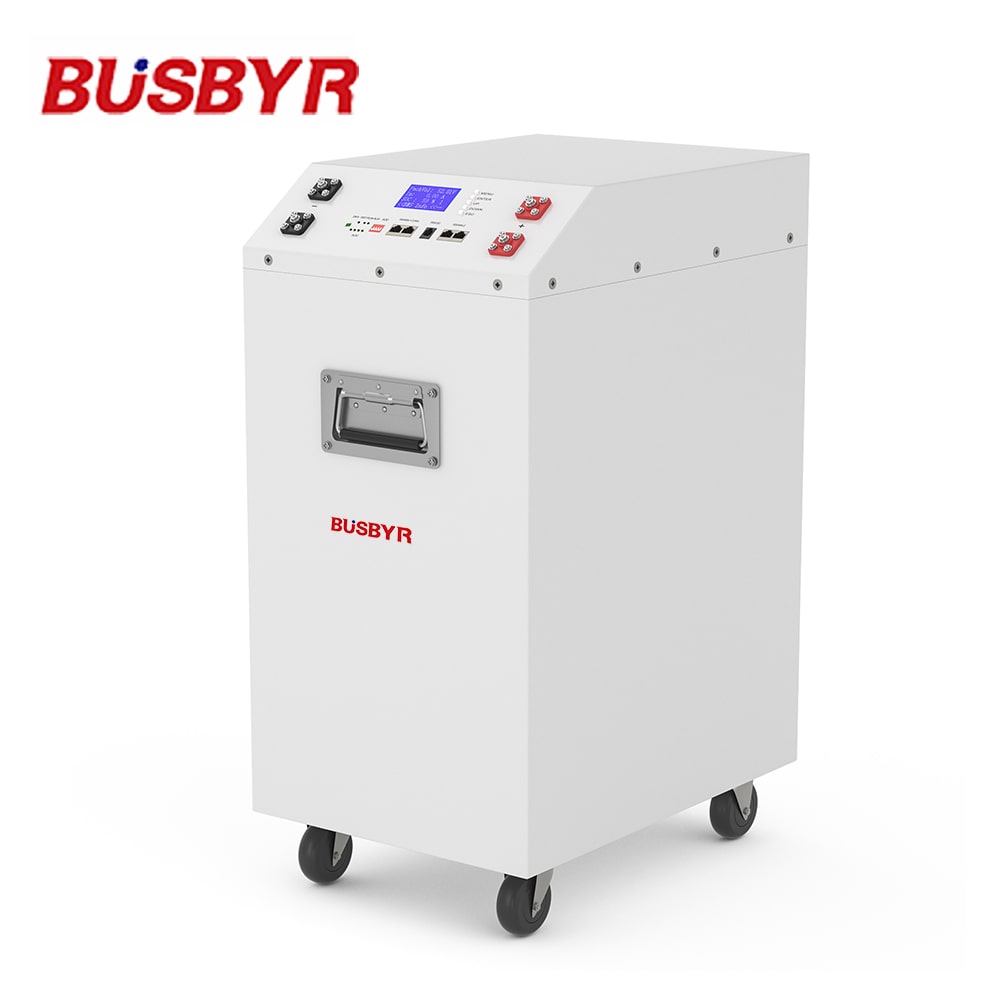

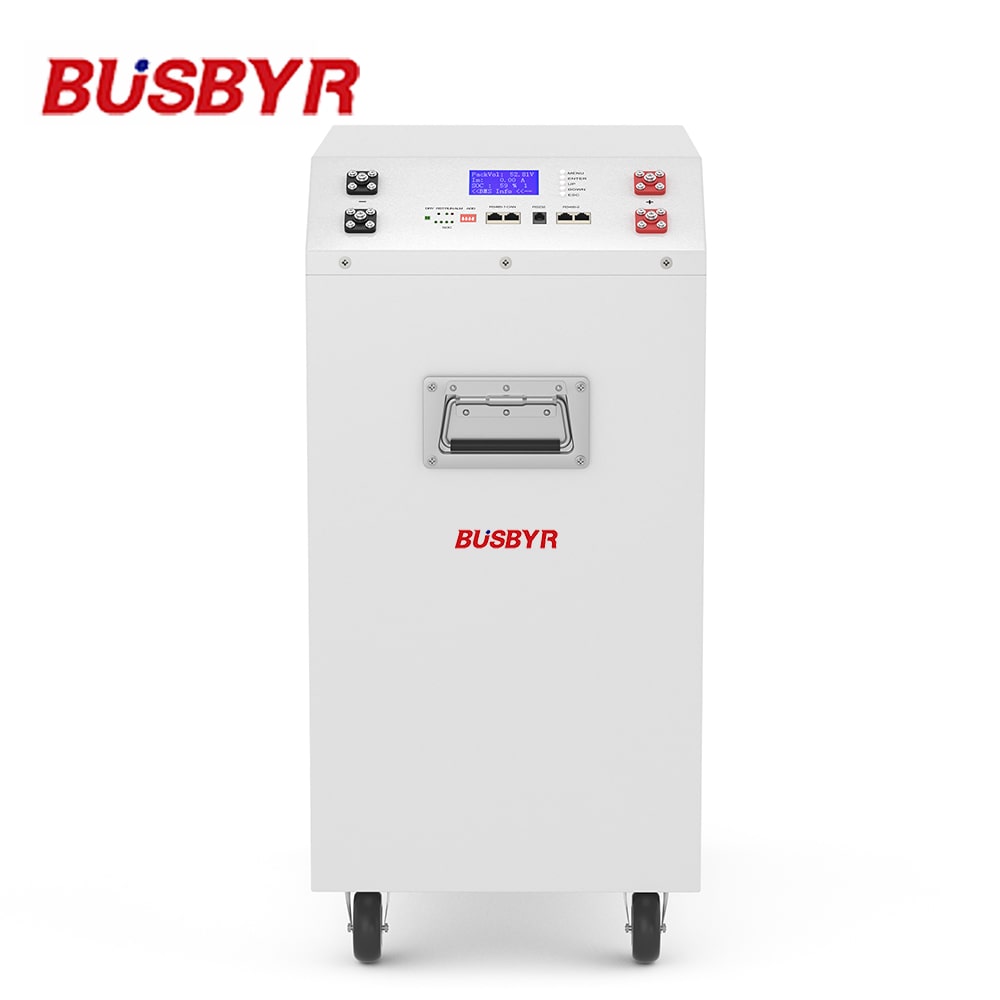

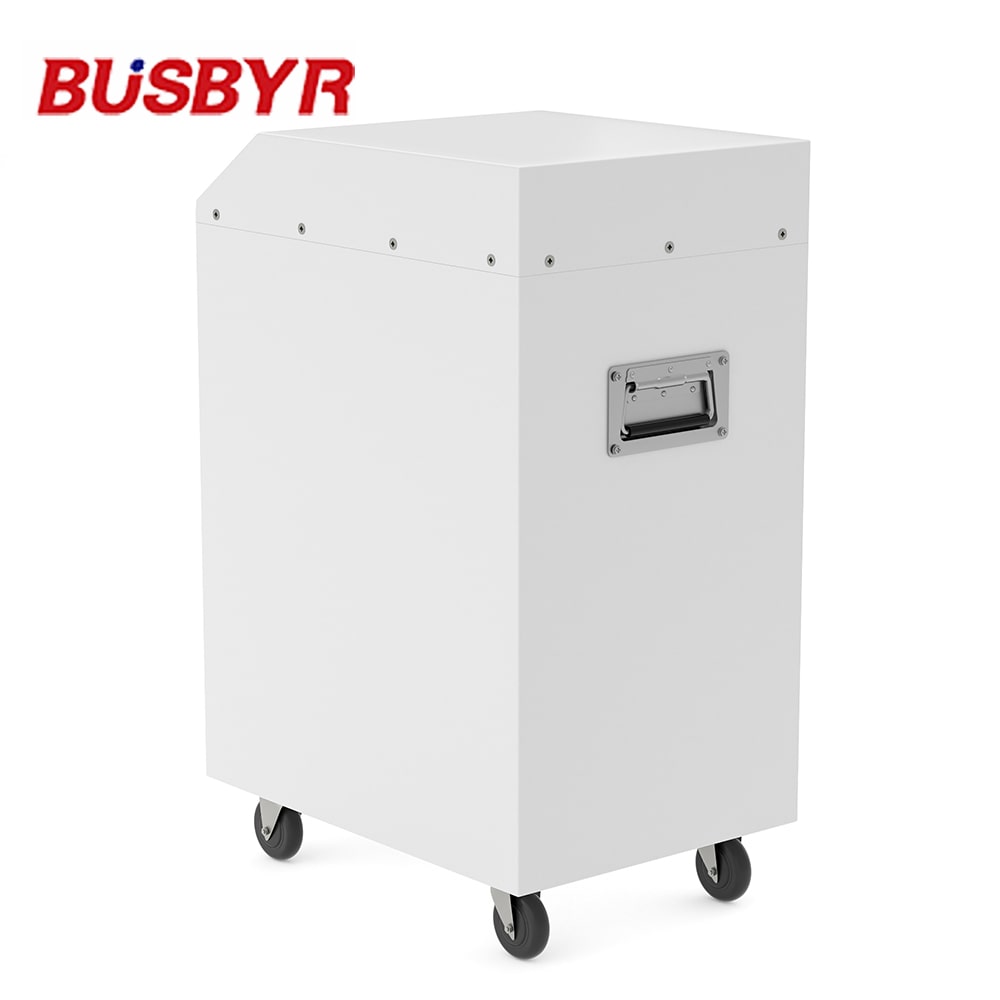

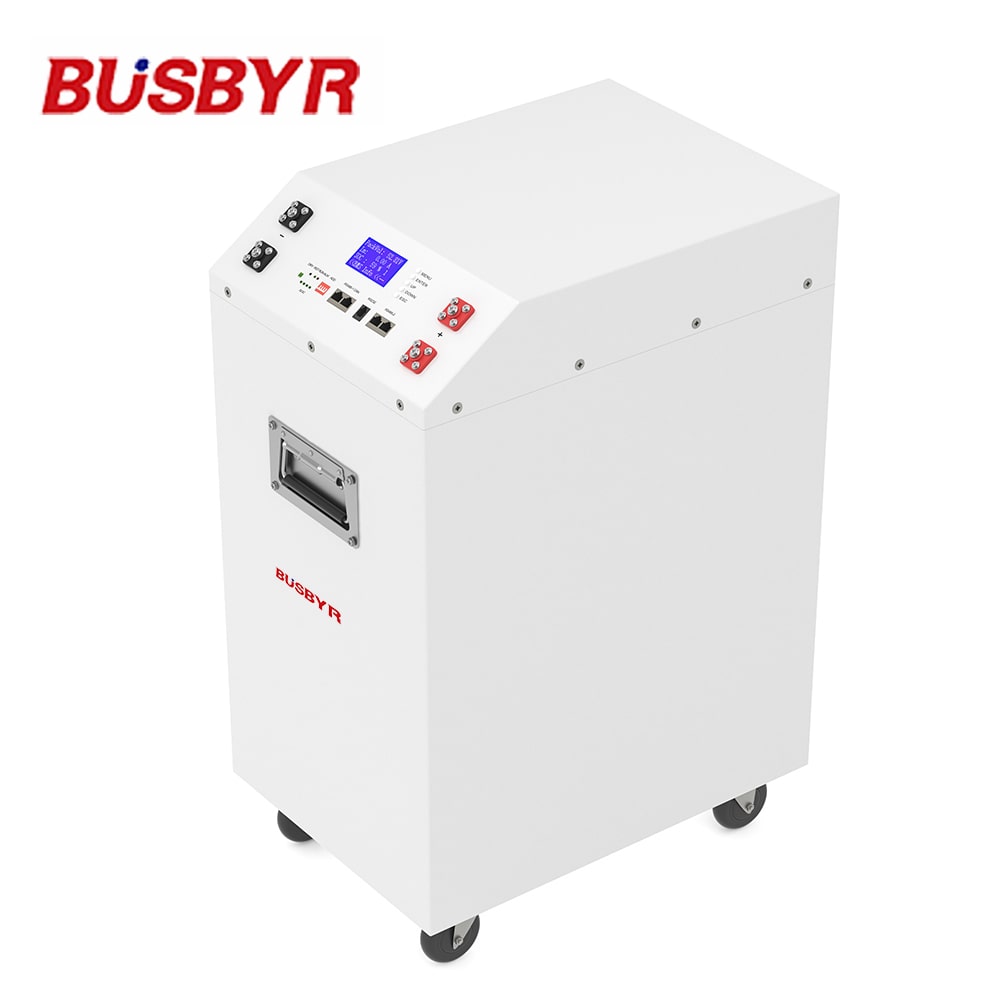

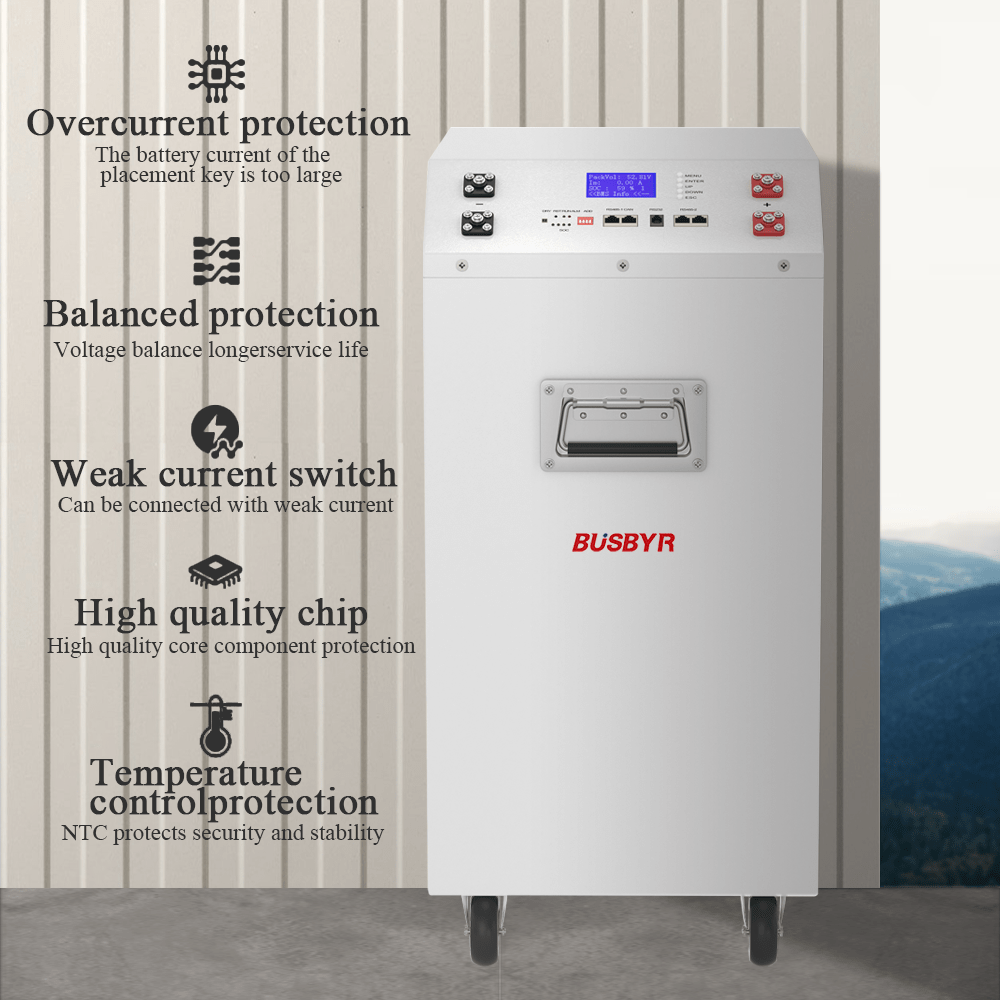

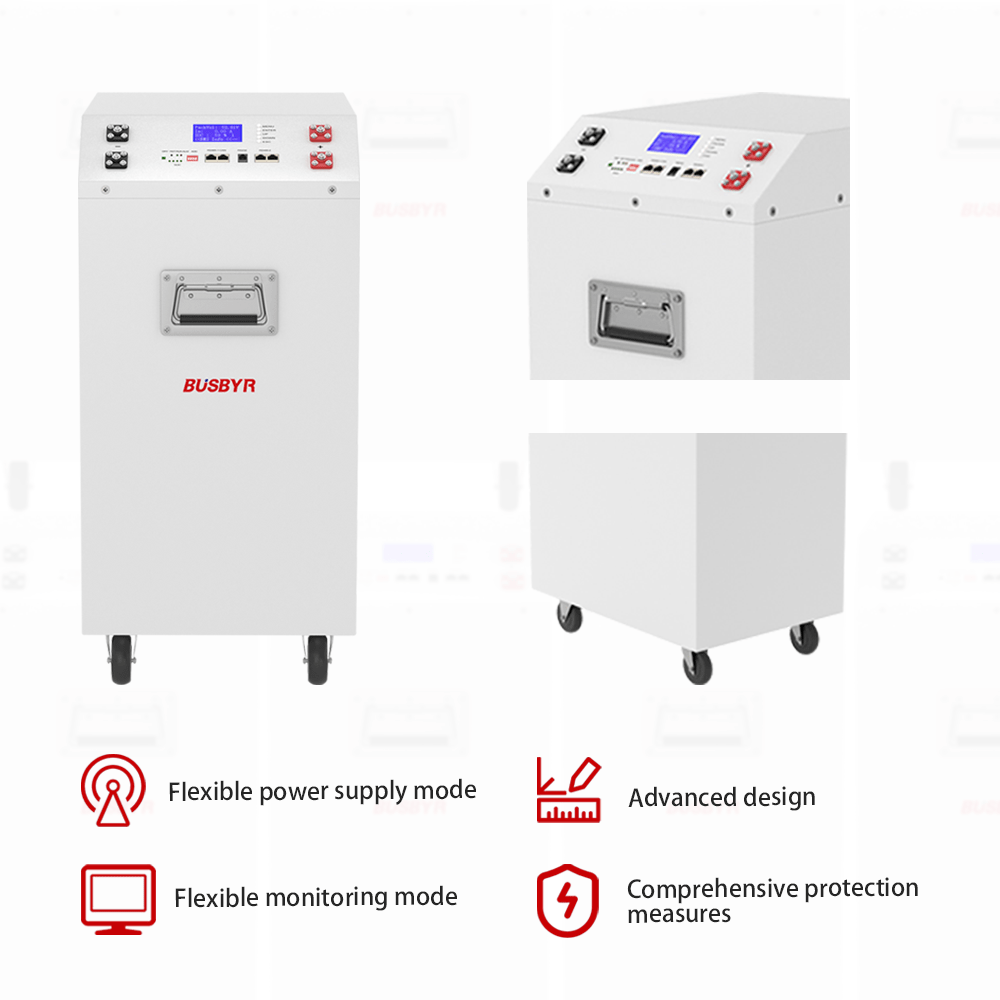

This battery is a new type of energy storage product, which is designed with wheels, convenient for movement and transportation. Using detachable battery cover, easy maintenance and replacement. Built-in integrated smart BMS with self-balance for each serial of cells, battery voltage, current, temperature and other information management and monitoring. It is easier and more convenient to use. This series has passed ISO9001, CE, ROHS, TUV and other certifications, and the quality meets international standards. Busbyr has a professional R&D team to customize exclusive solar energy solutions for each customer.
Battery Parameter
Item | Specification | ||
Model | LFP48-250 | LFP48-300 | LFP48-400 |
Reted Capacity | 250Ah | 300Ah | 400Ah |
Nominal Voltage | 51.2V | 51.2V | 51.2V |
Discharge Ending Voltage | 40.0V | 40.0V | 40.0V |
Charging Limited Voltage | 58.4V | 58.4V | 58.4V |
Max.Charging Current | 50.0A | 50.0A | 50.0A |
Max.Continue Discharging Current | 100.0A | 100.0A | 100.0A |
Weight | Approx.130.0kg | Approx.150.0kg | Approx.190.0kg |
Plug | Screw Terminal / Custom | Screw Terminal / Custom | Screw Terminal / Custom |
BMS Battery Management System | RS485/RS232/CAN | RS485/RS232/CAN | RS485/RS232/CAN |

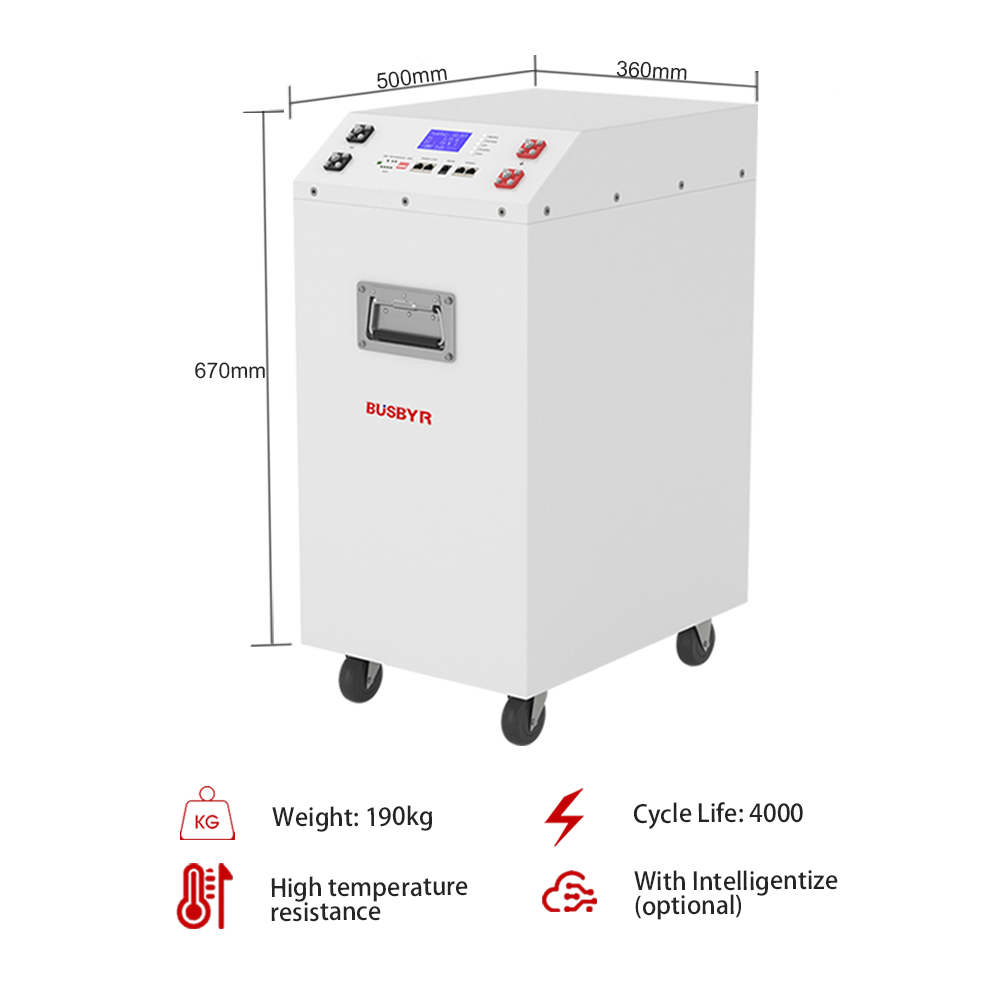

Dimension(MM) | 500*360*670mm(L*W*H) | 500*360*670mmL*W*H) | 500*360*670mmL*W*H) |
Containing Cell | 250Ah | 300Ah | 400Ah |
IP Class | IP30 | ||
Outer Package Material | iron shell | ||
Operating Temperature | Charging: 0-45℃ Discharging: -20-60℃ Storage: -20-60℃ | ||
Cycles | 4000 cycles | 4000 cycles | 4000 cycles |
Design Lifespan | 18~20 years | 18-20 years | 18-20 years |
