High Quality Movable Lifepo4 Battery 51.2V 400Ah 20KWh Lithium Ion Battery For Home

Vertical Lithium Battery

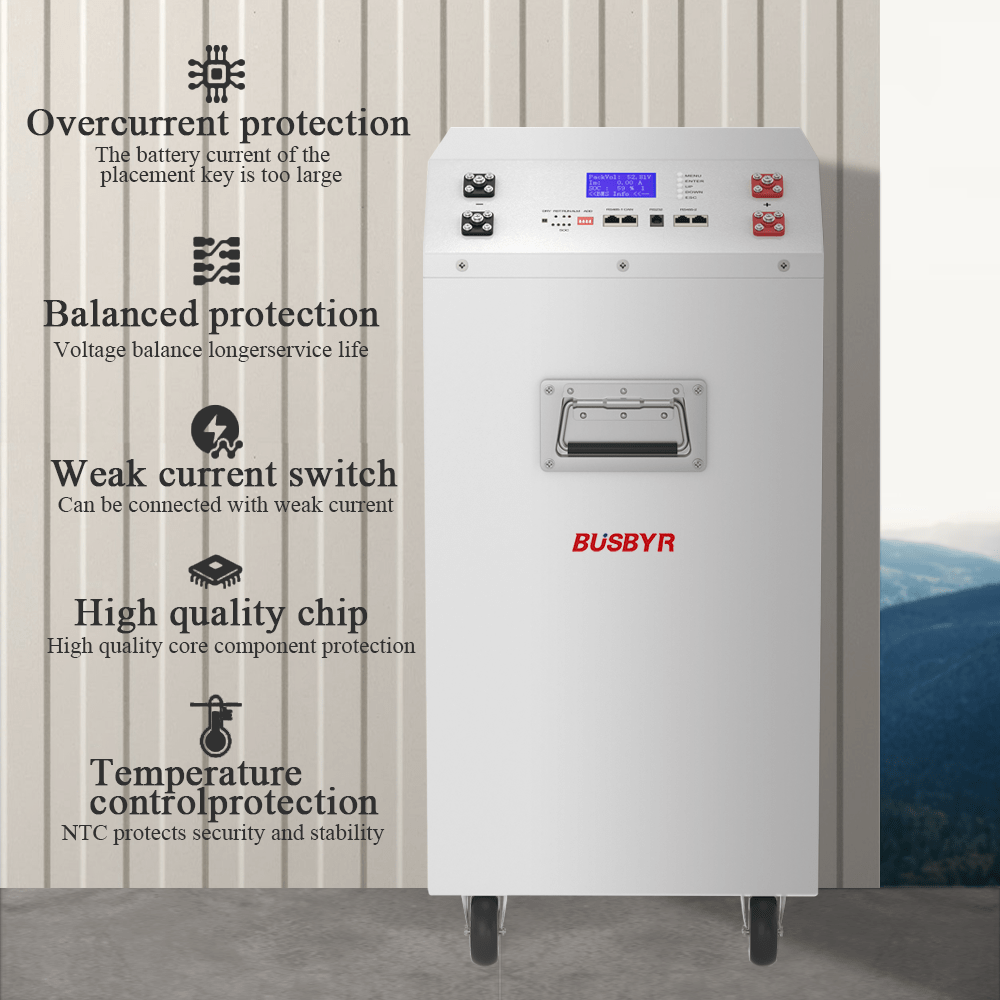

Key Features

●Safety in use

●Low self discharge rate

●Good high temperature performance

●High Cycle times and long service life

●High energy density and conversion efficiency

●Environmental friendly, without any heavy metals

●Easy installation, BMS Modbus protocol can communicate with the inverter


Description

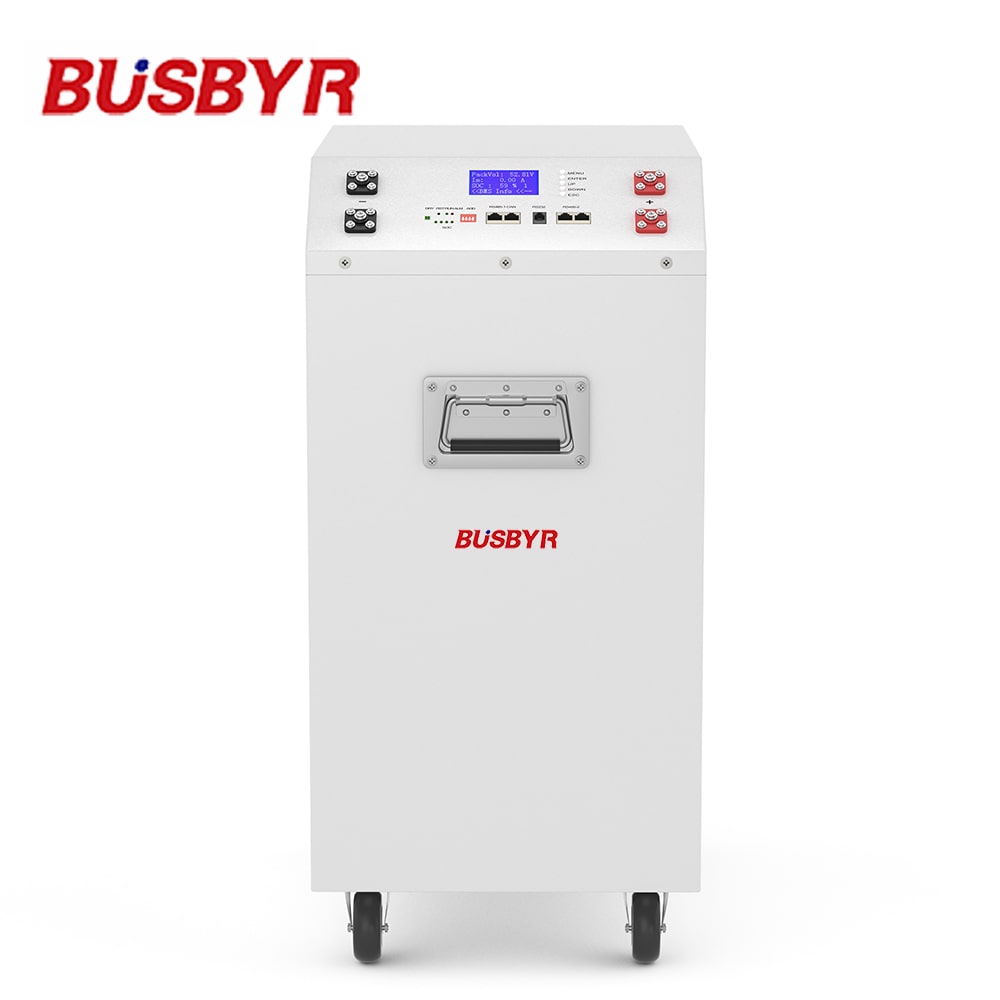

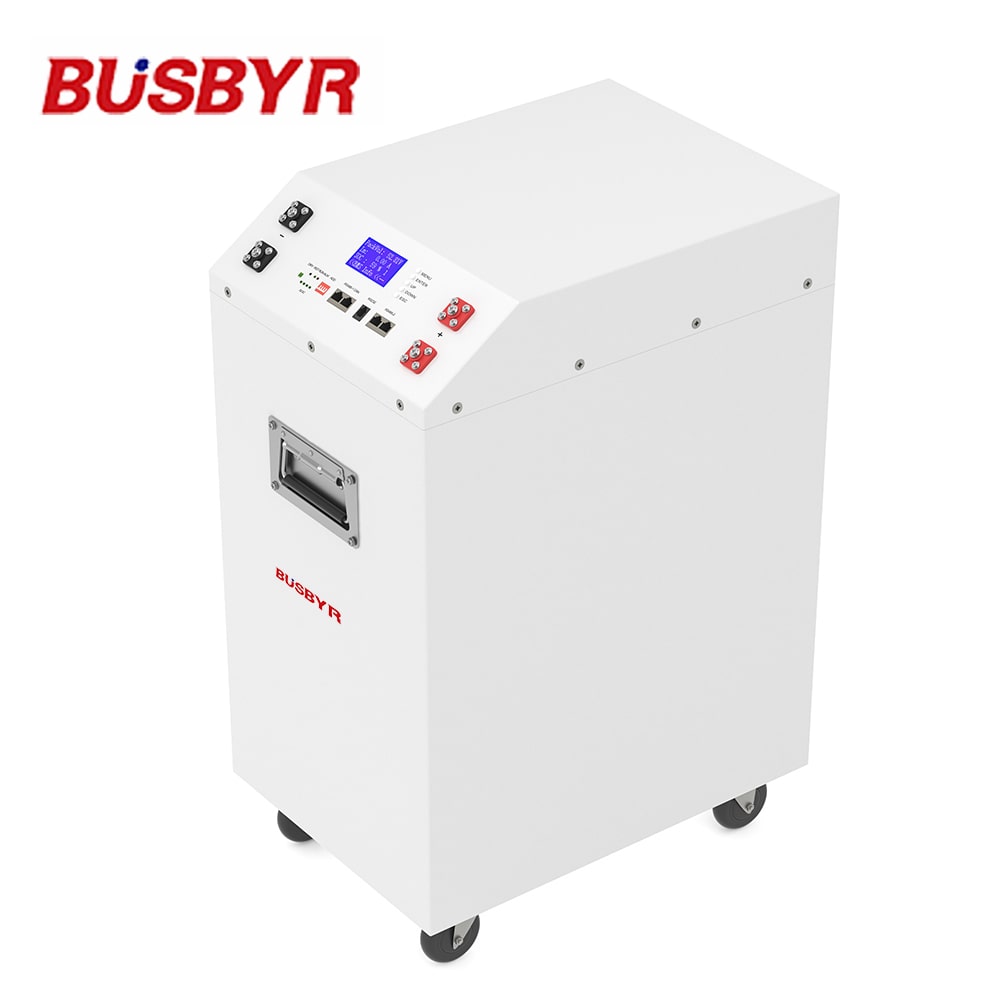

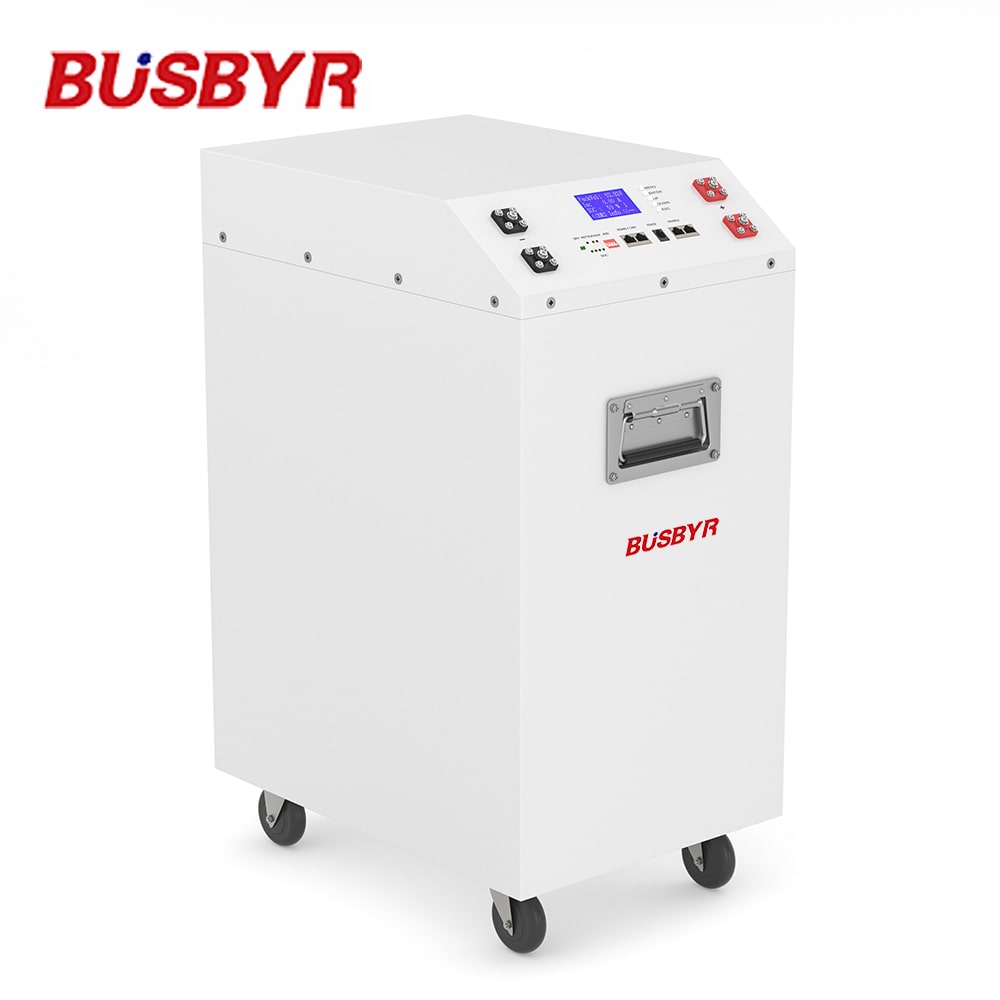

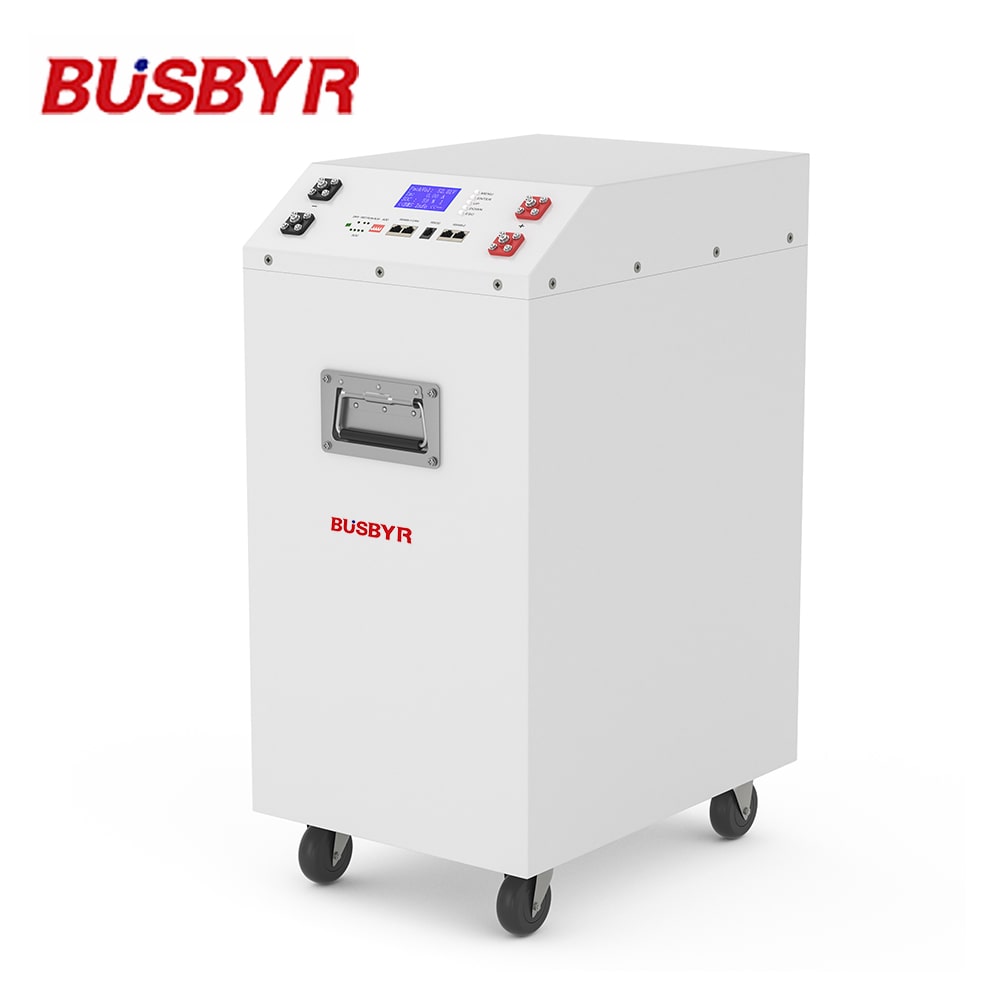

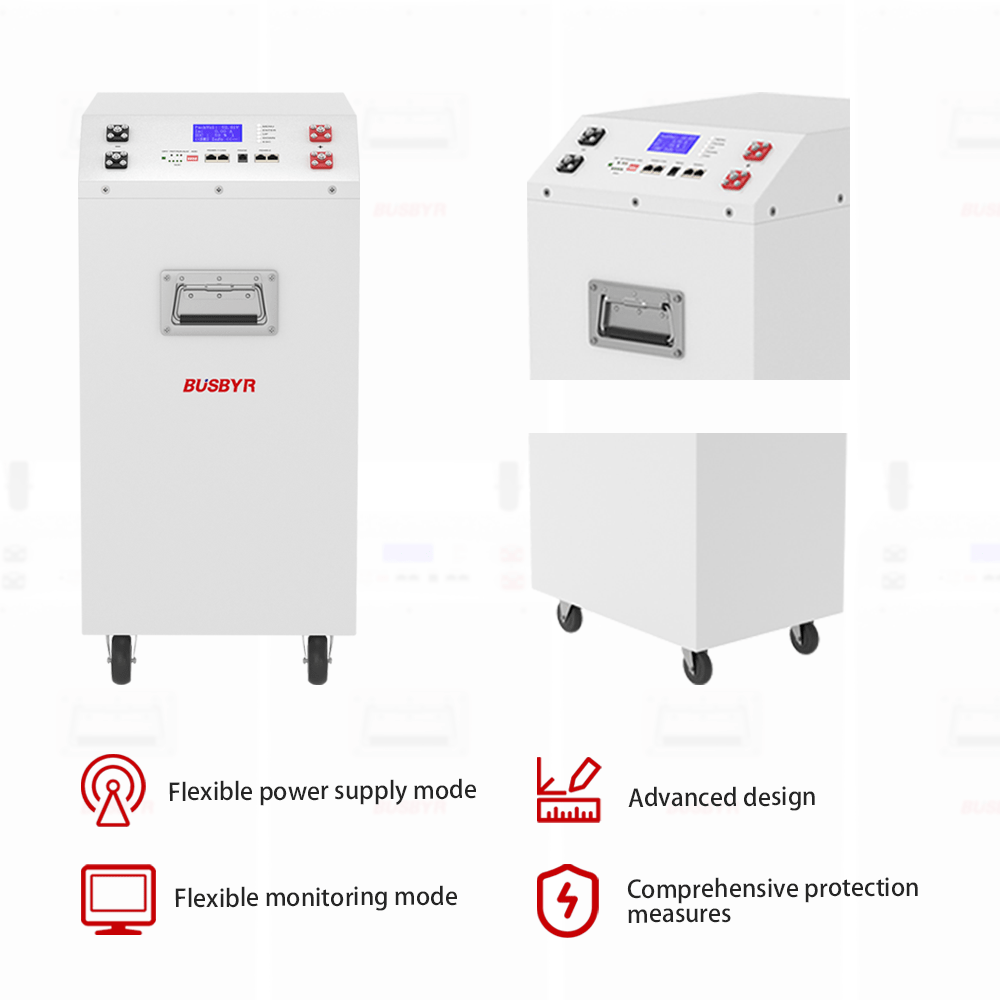

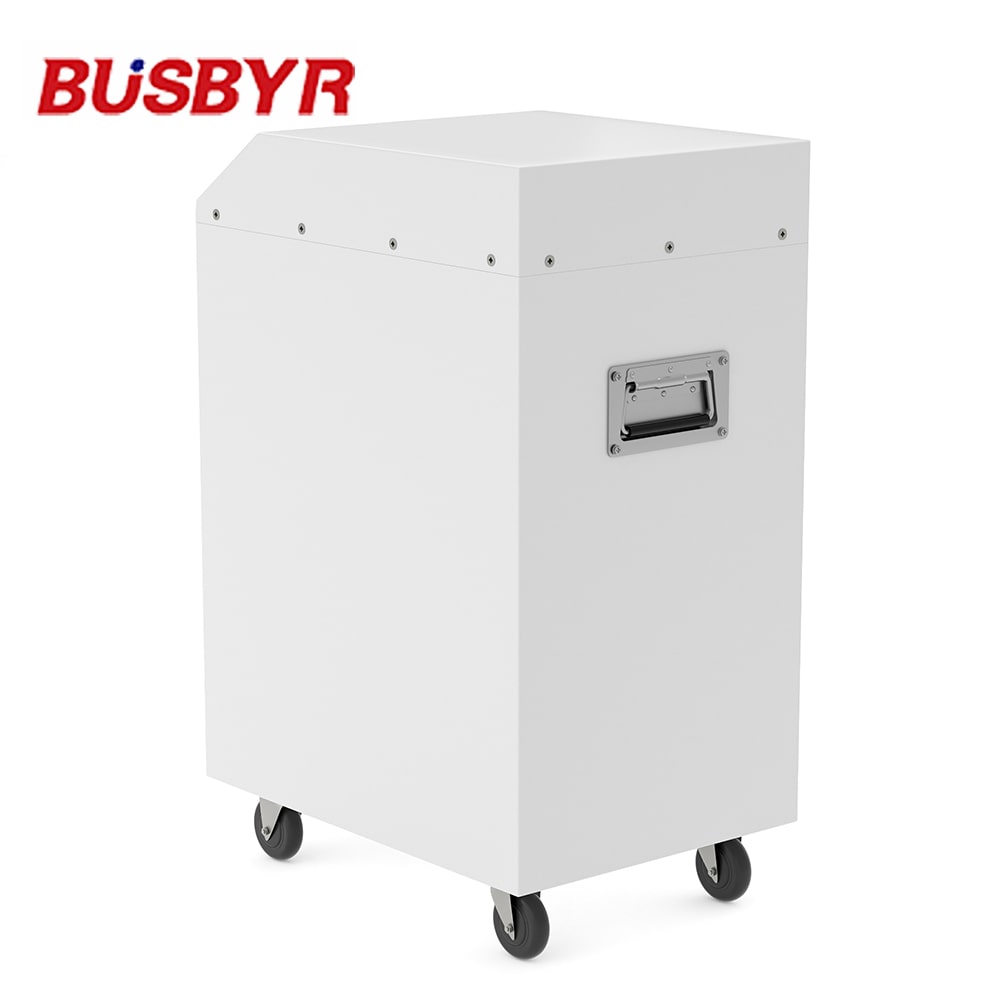

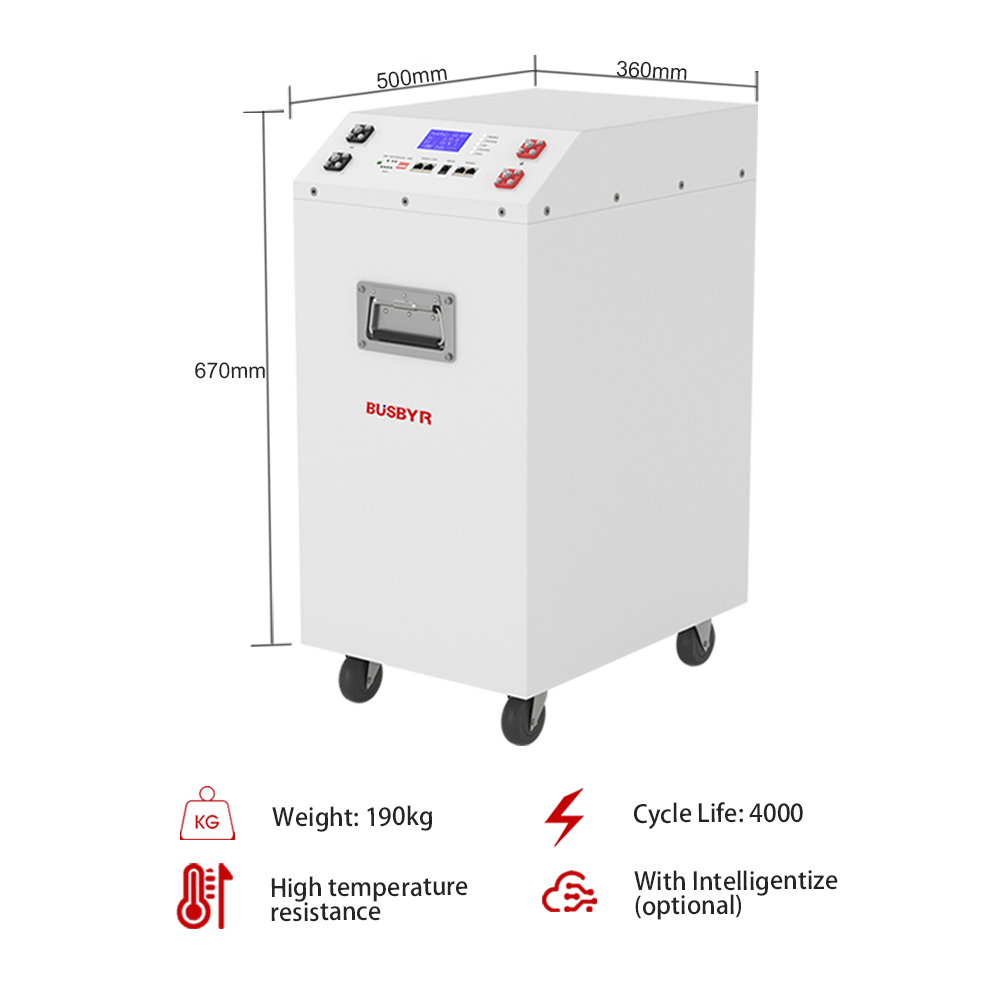

This battery is a new type of energy storage product, which is designed with wheels, convenient for movement and transportation. Using detachable battery cover, easy maintenance and replacement. Built-in integrated smart BMS with self-balance for each serial of cells, battery voltage, current, temperature and other information management and monitoring. It is easier and more convenient to use. This series has passed ISO9001, CE, ROHS, TUV and other certifications, and the quality meets international standards. Busbyr has a professional R&D team to customize exclusive solar energy solutions for each customer.

Battery Parameter

Item

Specification

Model

LFP48-250

LFP48-300

LFP48-400

Reted Capacity

250Ah

300Ah

400Ah

Nominal Voltage

51.2V

51.2V

51.2V

Discharge Ending Voltage

40.0V

40.0V

40.0V

Charging Limited Voltage

58.4V

58.4V

58.4V

Max.Charging Current

50.0A

50.0A

50.0A

Max.Continue Discharging Current

100.0A

100.0A

100.0A

Weight

Approx.130.0kg

Approx.150.0kg

Approx.190.0kg

Plug

Screw Terminal / Custom

Screw Terminal / Custom

Screw Terminal / Custom

BMS Battery Management System

RS485/RS232/CAN

RS485/RS232/CAN

RS485/RS232/CAN

Dimension(MM)

500*360*670mm(L*W*H)

500*360*670mmL*W*H)

500*360*670mmL*W*H)

Containing Cell

250Ah

300Ah

400Ah

IP Class

IP30

Outer Package Material

iron shell

Operating Temperature

Charging: 0-45℃ Discharging: -20-60℃ Storage: -20-60℃

Cycles

4000 cycles

4000 cycles

4000 cycles

Design Lifespan

18~20 years

18-20 years

18-20 years
